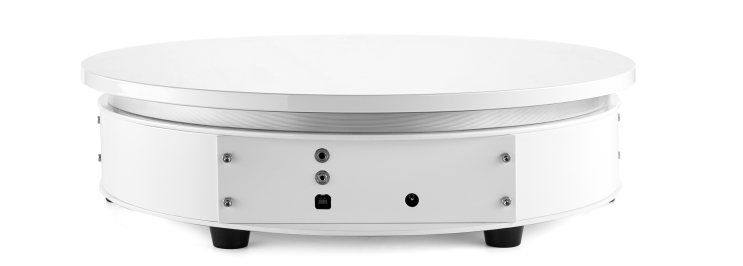

SpinShot Turntable

Performance

Maximum Payload:
220 lbs (100 kg)
360 View Capture Steps:
2–360 photos – Adjustable in 1 step increments
360 View Capture Speed:
When set to maximum speed and acceleration
  • 4 images in 16 seconds
  • 24 images in 30 seconds
  • 36 images in 38 seconds
  • 72 images in 62 seconds
  • 360 images in 172 seconds
Continuous Rotation Speed:
0.05 to 4.6 RPM – Adjustable in 0.05 RPM increments
Rotation Direction:
Clockwise or counterclockwise
Acceleration/Deceleration:
1 to 100% – Adjustable in 1% increments
Settle Delay:
0.0 to 10.0 seconds – Adjustable in 0.1 second increments
Angle Capture Precision:
±0.00001 degrees

Camera
Compatibility

Compatible Cameras:
All past and current mirrorless and DSLR models:
  • Canon
  • Hasselblad
  • Mamiya
  • Olympus
  • Panasonic
  • Phase One
  • Fujifilm

Dimensions and Weight

Height:
3.70 inches (9.40 cm)
Diameter (Rotational Plate):
14.17 inches (36.00 cm)
Diameter (Turntable Base):
13.39 inches (34.00 cm)
Weight:
15.25 lbs (6.92 kg)
SpinShot Turntable dimensions

Computer Requirements

Operating System:
Windows: Windows 8 or higher
Mac: macOS 10.10 or higher
Minimum:
  • 64-bit dual core 2.0 GHz CPU
  • 4 GB RAM
  • 1 GB graphics card
  • One USB-A port (computer to turntable)
  • SD or CF memory card reader
  • Less than 10 years old
Recommended:
  • 64-bit quad core 2.5 GHz CPU
  • 32 GB RAM
  • 4 GB graphics card
  • One USB-A port (computer to turntable)
  • One USB 3.0/3.1 port (tether camera to computer)
  • 1 Gb ethernet connection (computer to external storage)
  • External storage solution (direct attached storage or network attached storage)
  • Cloud backup (Dropbox, iCloud, etc.)
Optimal:
  • 2020 Apple iMac
  • 64-bit 10-core 3.6 GHz CPU
  • 128 GB RAM
  • 16 GB graphics card
  • One USB-A port (computer to turntable)
  • One USB 3.0/3.1 port (tether camera to computer)
  • 10 Gb ethernet connection (computer to network attached storage)
  • Network attached storage device
  • Backblaze cloud backup (for network attached storage)
  • iCloud backup (for computer operating system)

Materials

Enclosure:
Aluminum alloy, precision laser-cut and CNC milled
Nuts, Bolts, Washers:
Stainless steel

Electrical and Operation Requirements

Line Voltage:
100–240V AC
Frequency:
50 Hz to 60 Hz, single phase
Relative Humidity:
5% to 95% non-condensing
Operating Altitude:
Tested up to 5,000 ft (1,524 m)
Operating Temperature:
50° to 95° F (10° to 35° C)
Nominal Power:
15 W
Connection:
  • 2.5 mm jack plug to camera OEM shutter release plug (turntable to camera)
  • USB 2.0 (turntable or computer)
  • USB 2.0/3.0/3.1 (for tethering camera to computer)*
* Cord for USB 3.0/3.1 connection sold separately by your camera manufacturer.

Limited Warranty and Service

Your SpinShot Turntable comes with 90 days of complimentary technical support and a one‑year limited warranty.

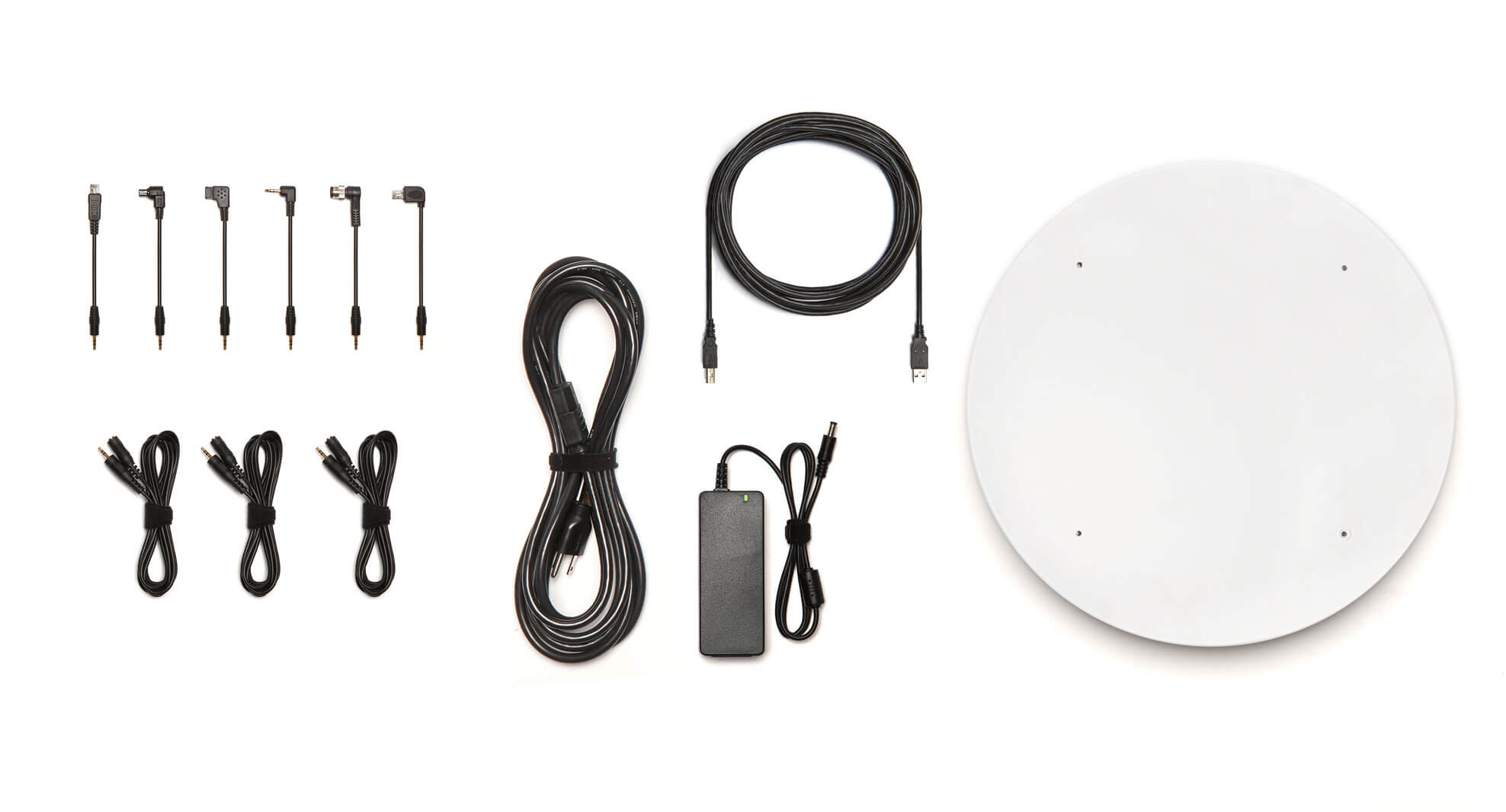

In The Box

  • 1x SpinShot Turntable
  • 1x Power Supply
  • 1x USB-A to USB-B Cord
  • 6x Shutter Release Adapters for*: Canon, Fujifilm, Nikon, Olympus, Sony, Panasonic/Lumix, Pentax

* Shutter release adapters for Hasselblad, Leica, Mamiya and Phase One are sold separately.

SpinShot Turntable in the box
